Minia Mesh – Pendant

Illuminate Your Spaces with Elegance and Flexibility!

The Minia Mesh offers the creative freedom to fashion stunning lighting structures using hexagons and squares. This unique feature empowers you to craft captivating mesh patterns that transform your space into an eye-catching masterpiece.
Whether adorning classic or modern interiors, the Mesh design of these pendants seamlessly blends in. Its timeless appeal makes it a perfect fit for both residential and commercial settings, effortlessly enhancing the ambiance of homes and office spaces alike.

Easy Installation and Customization

The Minia Mesh takes the hassle out of installation, ensuring a smooth and straightforward installation process. Additionally, it offers the flexibility to combine different modules within a single Mesh structure. Choose from Opal, Microprismatic, and MiniaX Darklight modules to create the perfect lighting solution for your needs.

Top-Quality Lighting

Minia leaves no room for compromise when it comes to quality. The Minia Mesh luminaire offers a variety of beam angles, allowing you to experience a comfortable, glare-free glow with Minia X, which boasts an outstanding UGR value of 13.

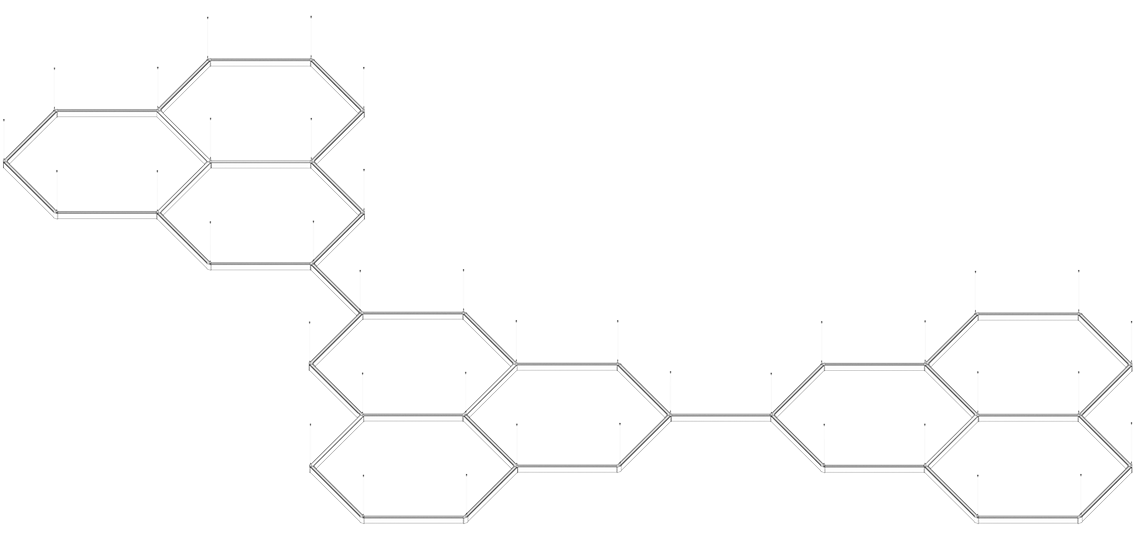

Hexagon Minia Mesh system dimensions

Length, mm	L1, mm	L2, mm	Ams, mm	I, mm	L, mm	Ams, mm

840	1544	3043	3058	914	1760
1120	2029	4013	4038	1194	2320
1400	2514	4983	5018	1474	2880
1680	2999	5953	5998	1754	3440
1960	3484	6923	6978	2034	4000
2240	3969	7893	7958	2314	4560
2520	4454	8863	8938	2594	5120
2800	4939	9833	9918	2874	5680
3080	5424	10803	10898	3154	6240

Square Minia Mesh system dimensions

Length, mm	L, mm	L1, mm

840	929	1812
1120	1209	2372
1400	1489	2932
1680	1769	3492
1960	2049	4052
2240	2329	4612
2520	2609	5172
2800	2889	5732
3080	3169	6292

Only 1

Only one single feed cord for entire network.

Patterns by shape combination

Key benefits

2700K-4000K white color

CRI90+ / CRI 95+

Efficacy up to 130 Lm/W

L90B10 60.000hours

Microprism, Opal, Baffles

3-step MacAdam LEDs

Driver inside housing

IP20

Various lengths in 0.56m – 3.08m range

Fixed output, DALI or 0-10V dimmable

Customization for
your project

Covers

Opal

For general lighting and “white line” effect

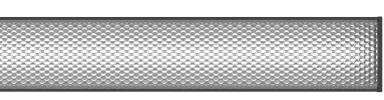

Microprism

For comfortable general and task lighting

Baffles

Very comfortable “Darklight” low glare lighting

65° beam angle

80° beam angle

Light Effect

65° beam angle

80° beam angle

Clear lenses

■ Possible color shift could occur at beam angle’s edge (Color-Over-Angle effect)
■ ~10% more light output
■ Recommended for office lighting

65° beam angle

80° beam angle

Frosted lenses

■ No color shift at the edge of beam angle (no Color-Over-Angle effect)
■ ~10% less light output
■ Recommended for residential lighting

White mat

Silver metalized

Black mat

Black metalized

Baffles colors

Choose from a variety of baffle colors and finishes to perfectly complement and enhance your interior. Elevate your space with our stylish options that not only provide functionality but also add a touch of elegance to your surroundings.

Endless color combinations

Explore a vast array of color combinations. Our fixtures are available in white, gray, and black. These base colors can be seamlessly paired with various baffles, allowing you to discover the most captivating luminaire color combinations. And if you don’t find the perfect match, we can custom craft your fixture with your specified RAL color code.

Color combinations

Black body, white blackout, white mat baffles

Grey body, white blackout, white mat baffles

White body, white blackout, white mat baffles

White body, white blackout, black mat baffles

Black body, black blackout, silver metalized baffles

Grey body, grey blackout, silver metalized baffles

White body, white blackout, silver metalized baffles

White body, white blackout, black metalized baffles

Black body, black blackout, black mat baffles

Grey body, black blackout, black mat baffles

White body, black blackout, black mat baffles

Custom color on request

Black body, black blackout, black metalized baffles

Grey body, black blackout, black metalized baffles

White body, black blackout, black metalized baffles

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI90+ / CRI95+

Perfect for Various Spaces

From office workplaces to cozy lounges, from corridors to business centers, hotels, shops, and beyond, Minia Mesh illuminates every corner with elegance and finesse. Let it illuminate your world and create an atmosphere that leaves a lasting impression on everyone who steps in.
Minia Mesh Pendant is available in both direct and indirect lighting configurations. The indirect beam generously spreads light across your space, creating an inviting atmosphere.

Direct

Direct / Indirect

Size matters

Size truly matters! Our compact and precisely proportioned linear fixture seamlessly complements nearly any space, adding an air of elegance without overpowering it. It not only fulfills your lighting needs but also brings a touch of sophistication to your interior environment.

Length from 0.56m up to 3.08m

Joints of your ideas

By utilizing joints, you can create limitless-sized Mesh structures by combining LED modules of any length.

Joints

Gallery

Experience the magic of Minia Mesh lighting systems, where simplicity meets style. Let your creativity shine with easy-to-install and captivating lighting options that transform your spaces into inviting havens of light!
